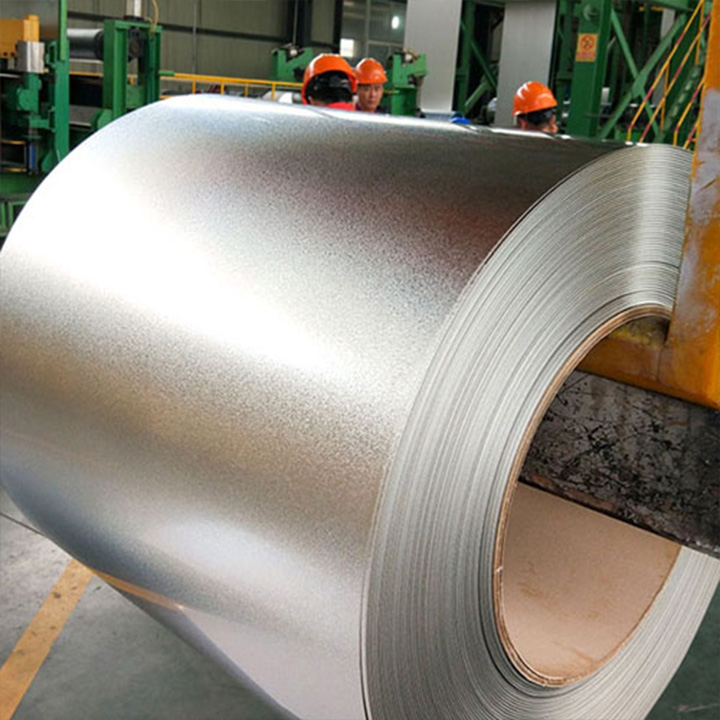

Galvalume Steel Coil
The surface of the galvanized steel sheet is uniquely smooth, flat and gorgeous with a silvery white base color. The special coating structure gives it excellent corrosion resistance.
Galvalume Characteristics
1. Heat reflectivity:
The heat reflectivity of aluminum-zinc steel sheet is very high, twice that of galvanized steel sheet, and people often use it as a heat insulation material.
2. Heat resistance:
Aluminum-zinc alloy steel sheet has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius. It is very similar to the high-temperature oxidation resistance of aluminum-plated steel sheet and is often used in chimney pipes, ovens, lighting fixtures and fluorescent lampshades. Corrosion resistance:
The corrosion resistance of aluminum-zinc steel coils is mainly due to aluminum and its protective function. When zinc is worn, aluminum forms a dense layer of aluminum oxide to prevent corrosion-resistant substances from further corroding the interior.
3. Economic efficiency:
Because the density of 55%AL-Zn is lower than that of Zn, the area of aluminum-zinc steel sheet is more than 3% larger than that of galvanized steel sheet under the same weight and the same thickness of the gold-plated layer.
4. Easy to paint
The aluminum zinc plate has excellent adhesion to the paint and can be painted without pretreatment and weathering.
The paint adhesion of the gold-plated layer of the aluminum zinc steel plate is relatively good, so it can be directly coated on advertising boards and general boards without pretreatment such as weathering.
5. The aluminum zinc plate has a gorgeous silver-white surface.
6. The aluminum zinc plate has similar processing performance and spraying performance as the galvanized steel plate.
Product Parameters
Name | Galvalume steel coil/sheet |
Size | Thickness:0.12-4mm |
Width:30-1250mm | |
Basal plate | cold rolled based |
Zinc coating | 30- 275g/m2 |
Standard and Materia | SGCC, SGCC, DX51D+Z, JIS G3321 ASTM A792M Q/BQB 420-1999 AS 1997 10147-90 EN 10147-90 |
Production process | Cold rolled steel coil-uncoil-Pickling-Annealed-hot dipped galvanizing-cooling -surface treatment -rolling |
Surface Treatment | Light Oil, Unoil,dry, chromate passivated, non-chromate passivated. |
Application | Gutters ,Auto parts ,Electrical Appliances,Purling,Vending Machine,Refrigerator, |
Coil weight | 3-8MT/Coil or as your request |
Difference introduction
The difference between galvanized sheet and galvanized sheet:
The difference between galvanized sheet and galvanized sheet mainly lies in the difference in coating. A layer of zinc material is evenly distributed on the surface of galvanized sheet, which plays the role of anodic protection for the parent material. In other words, the substitution corrosion of zinc material protects the use of the parent material. Only when the zinc is completely corroded can the parent material inside be damaged.
The difference between galvanized sheet and galvanized sheet mainly lies in the difference in coating. A layer of zinc material is evenly distributed on the surface of galvanized sheet, which plays the role of anodic protection for the parent material. In other words, the substitution corrosion of zinc material protects the use of the parent material. Only when the zinc is completely corroded can the parent material inside be damaged.
The surface coating of galvanized sheet is composed of 55% aluminum, 43.5% zinc and a small amount of other elements. Under the microscopic level, the surface of galvanized sheet is a honeycomb structure, and zinc is contained in the “honeycomb” composed of aluminum. In this case, although the galvanized coating also plays the role of anodic protection, the effect of anodic protection is greatly reduced due to the reduction of zinc content and the difficulty of electrolysis of zinc material wrapped in aluminum. Therefore, once the galvanized sheet is cut, the cut edge will quickly rust under the condition of basically losing protection. Therefore, the galvanized sheet should be cut as little as possible. Once cut, anti-rust paint or zinc-rich paint should be used to protect the edge to extend the service life of the sheet.
Application
Buildings: roofs, walls, garages, soundproof walls, pipes and modular houses, etc.
Automobiles: mufflers, exhaust pipes, wiper accessories, fuel tanks, truck boxes, etc.
Home appliances: refrigerator back panels, gas stoves, air conditioners, electronic microwave ovens, LCD frames, CRT explosion-proof belts, LED backlights, electrical cabinets, etc.
Agriculture: piggeries, chicken houses, granaries, greenhouse pipes, etc.
Others: thermal insulation covers, heat exchangers, dryers, water heaters, etc.
Automobiles: mufflers, exhaust pipes, wiper accessories, fuel tanks, truck boxes, etc.
Home appliances: refrigerator back panels, gas stoves, air conditioners, electronic microwave ovens, LCD frames, CRT explosion-proof belts, LED backlights, electrical cabinets, etc.
Agriculture: piggeries, chicken houses, granaries, greenhouse pipes, etc.
Others: thermal insulation covers, heat exchangers, dryers, water heaters, etc.
