Aluminum checked plate

Aluminum patterned plate is rolled by a roller press to form a convex pattern on the surface of the aluminum flat plate. There are many kinds of patterned plates, the most common of which is the five-rib patterned aluminum plate (shaped like a willow leaf).

Inquiry Form

Product Parameters

Material
1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.
2000 Series: 2014, 2024, etc.
3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.
4000 Series: 4045, 4047, 4343, etc.
5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5454, 5754, 5A06, etc.
6000 Series: 6061, 6063, 6082, 6A02, etc.
7000 Series:7075,7475
Standard
AISI,ASTM,DIN,JIS,GB,GOST, ect.
Surface Treatment
Coated, Embossed,Brushed, polished, Anodized,etc.
Processing Service
Bending,Welding,Decoiling,Cutting,Punching
Size Tolerance
Thickness error:±0.005mm Width error:0.1mm
Certificate
ISO9001 ,CE, SGS,etc.
Application
Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc

Chemical composition

Grade
Si
Fe
Cu
Mn
Mg
Zn
Ti
Other
AI
1050
0.25
0.4
0.05
0.05
0.05
0.05
0.03
0.03
99.5
1060
0.25
0.35
0.05
0.03
0.03
0.05
0.03
0.03
99.6
1100
0.95
0.95
0.05-0.2
0.05
–
0.1
–
0.15
99
2A12
0.5
0.5
3.8-4.9
0.3-0.9
1.2-1.8
0.3
0.15
1.0
Remains
2017
0.2-0.8
0.7
3.5-4.5
0.4-1.0
0.4-0.8
0.25
0.15
0.15
Remains
2014
0.5-1.2
0.7
3.9-5
0.4-1.2
0.2-0.8
0.25
0.15
0.15
Remains
3003
0.6
0.7
0.05-0.2
1.0-1.5
–
0.1
–
0.15
Remains
3005
0.6
0.7
0.3
1.0-1.5
0.2-0.6
0.25
0.1
0.15
Remains
3105
0.6
0.7
0.3
0.3-0.8
0.2-0.8
0.4
0.1
0.15
Remains
5005
0.3
0.7
0.2
0.2
0.5-1.1
0.25
–
0.15
Remains
5052
0.25
0.4
0.1
0.1
2.2-2.8
0.1
–
0.15
Remains
5083
0.4
0.4
0.1
0.4-1.0
4.0-4.9
0.25
0.15
0.15
Remains
5182
0.2
0.35
0.15
0.2-0.5
4.0-5.0
0.25
0.15
0.15
Remains
5754
0.4
0.4
0.1
0.5
2.6-3.6
0.2
0.15
0.15
Remains
6061
0.4-0.8
0.7
0.15-0.4
0.15
0.8-1.2
0.25
0.15
0.15
Remains
6063
0.2-0.6
0.35
0.1
0.1
0.45-0.9
0.1
0.1
0.15
Remains
6082
0.7-1.3
0.5
0.1
0.4-1
0.6-1.2
0.2
0.1
0.15
Remains
7075
0.4
0.5
1.2-2.0
0.3
2.1-2.9
5.1-5.6
0.2
0.15
Remains

Surface

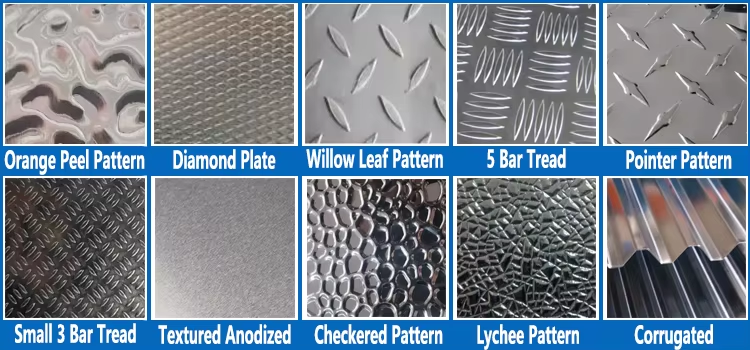

According to the different classifications of aluminum plate patterns

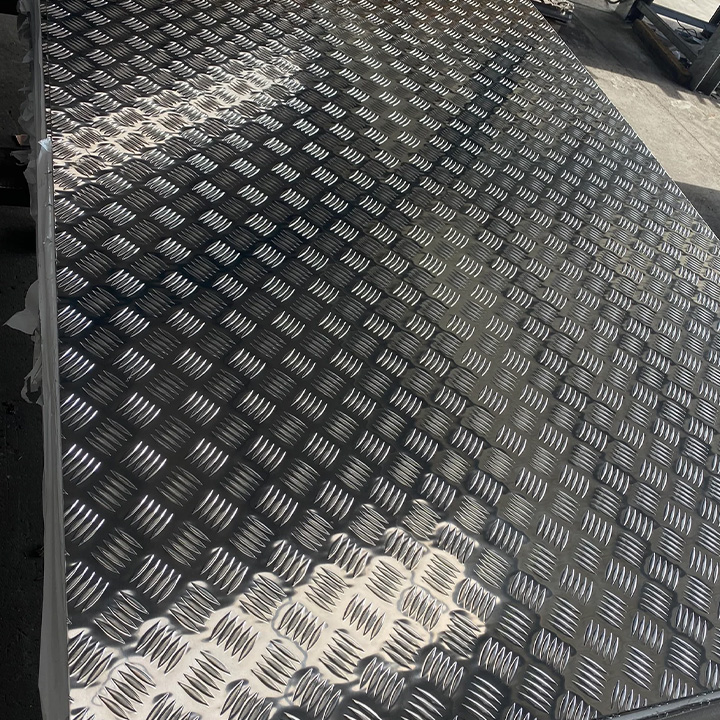

1. Five-rib aluminum alloy pattern plate: Five-rib anti-skid aluminum plate is also called willow-leaf pattern plate, aluminum alloy pattern plate. It has good anti-skid ability and is widely used in building (floor) platform design and other aspects. Since the pattern on the surface of the aluminum plate is arranged in relative parallel according to five concave and convex patterns, and each pattern is at an angle of 60-80 degrees with other patterns, this pattern has excellent anti-skid performance. This type of aluminum plate is usually used as anti-skid in China, with good anti-skid effect and cheaper price.
2. Compass aluminum alloy pattern plate: anti-skid aluminum plate, which has the same effect as five ribs, but is not often used.

3. Orange peel aluminum alloy patterned plates are divided into: classic orange peel patterned aluminum plates, variant orange peel patterned aluminum plates (also known as insect patterned aluminum plates). Its surface presents a pattern similar to that of orange peel, so it can also be called orange peel patterned aluminum plates. It is a series of patterned products commonly used in refrigerators, air conditioners and packaging.
4. Lentil-shaped patterned aluminum plates are a common style of anti-slip aluminum plates with good anti-slip effects. They are mainly used for anti-slip of carriages, platforms, cold storage floors, workshop floors, and elevators.

5. Spherical pattern aluminum sheet can also be called semi-spherical pattern aluminum sheet. The surface presents small spherical patterns, like small pearls, so this aluminum sheet can also be called pearl-shaped pattern aluminum sheet. It is mainly used in outer packaging. The appearance is more beautiful. Due to the special pattern, the strength of this aluminum sheet is much higher than other pattern series.
6. Other aluminum plate pattern materials: wavy pattern material, water corrugated aluminum pattern plate, corrugated pattern aluminum plate (also known as aluminum tile), rattan pattern aluminum plate, three-dimensional triangular aluminum pattern plate, strip pattern aluminum plate, pebble aluminum pattern plate, pattern aluminum pattern plate, triangular strip pattern aluminum plate, butterfly pattern aluminum plate, etc.
7. Diamond aluminum alloy pattern plate: commonly used for packaging pipes or outer packaging.
